Why Choose CCE
| What we do: | High Precision technique! | ||
|---|---|---|---|
| ◥ Why Choose CCE | CCE utilize the precise CNC lathe & multi-machining technique to accomplish the following critical characteristics, | ||
| ◥ Equipment List | Deep-hole Machining: Take the stainless steel for example, the max. depth we can reach is ten times the diameter |
||
| ◥ Quality Control | of the drill. | ||

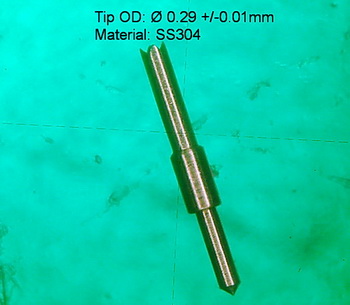

| ◥ Heat Treating & Plating | Micro-hole Machining: We can acheive the micro-hole as small as Ø 0.1mm. | ||

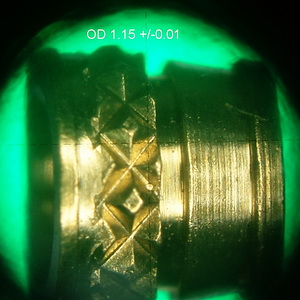

| ◥ Materials | Outer Thread Machining: We can acheive the micro thread as M1 X 0.2. | ||
| ◥ Sample Gallery | Inner Thread Machining: We can acheive the micro thread as M0.6 X 0.15. | ||
| Surface Rouhness: We can acheive fine surface finish as Ra 0.2, Rmax 0.8, & Rz 0.8z. | |||
| Machining Tolerance: We can control the tight tolerances as 3μ for OD and 5μ for ID, & length. | |||
| Precision Thread Machining: We can achieve the class 1 thread for both the JIS & UNS standard. |
|||
 |
 |
||
 |
|||
